Short path distillation in a glass plant with 0.05 m2 wiped heating surface. KDL5 units are suitable for a throughput
of up to 1.5 kg/h at evaporator temperatures of up to 300 °C and reduced pressure conditions of up to 10-3 mbar.
The basic requirements for the purchase of a short path distillation system always result from the product properties (liquid/of low viscosity or of high viscosity/solid at room temperature) and
the requirement for operational flexibility (discontinuous, semi-continuous or continuous distillation). Our KDL5 standard system series offers the perfect model for every customer requirement.

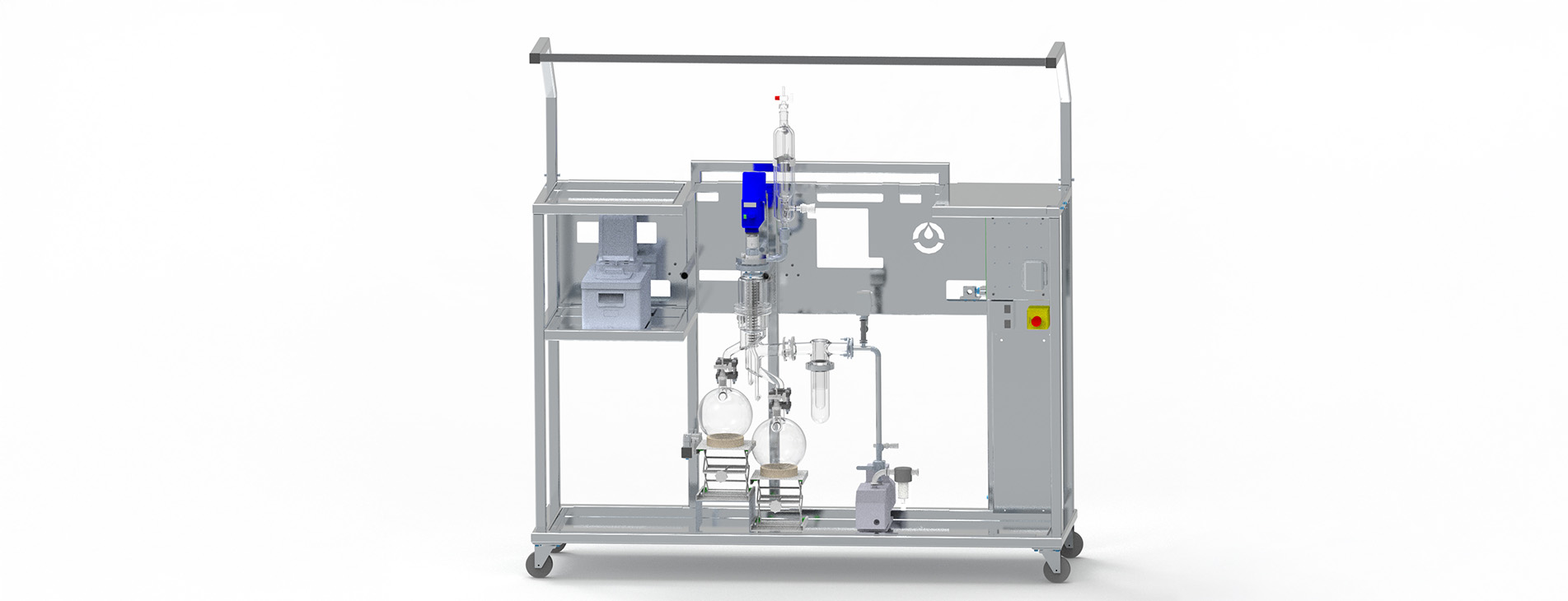

The KDL5 MANUAL is the entry-level model in the KDL5 series and the perfect system for the discontinuous distillation of liquid or low-viscosity products at room temperature. The system is operated manually.

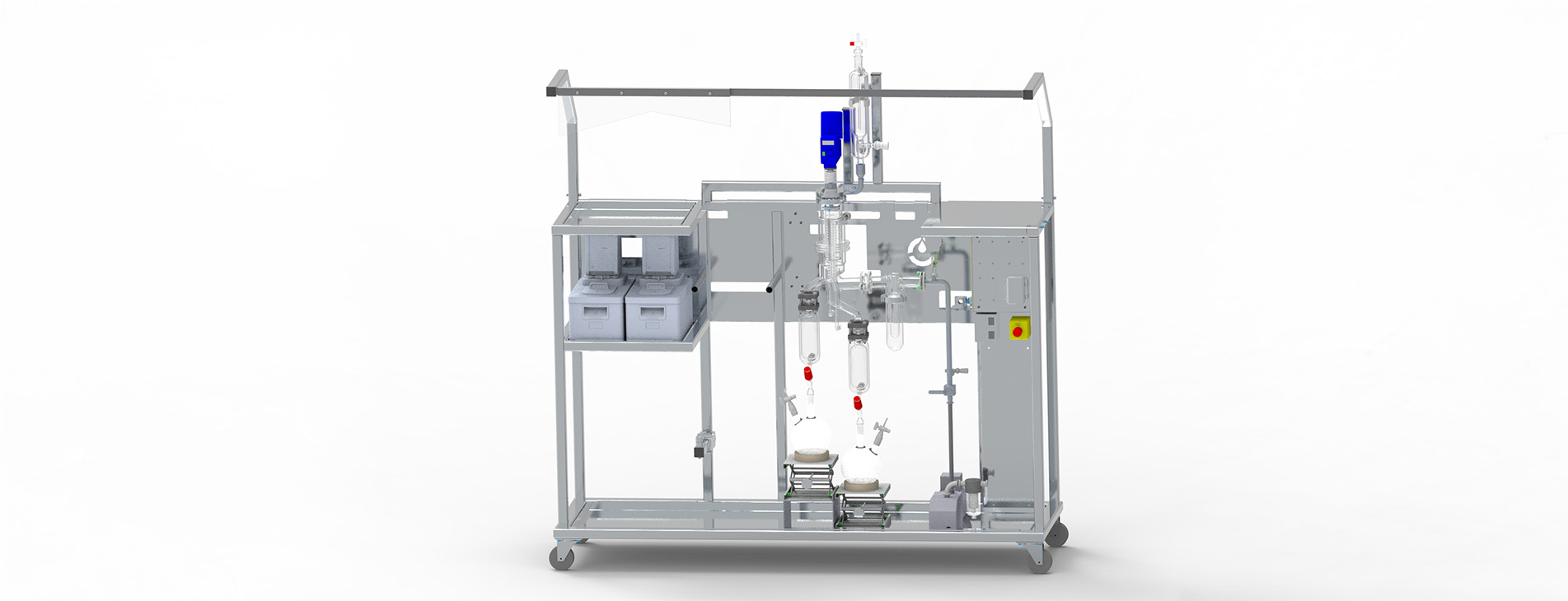

The KDL5 MANUAL + is the perfect system for the discontinuous distillation of solid or highly viscous substances (at room temperature). The system is operated manually.

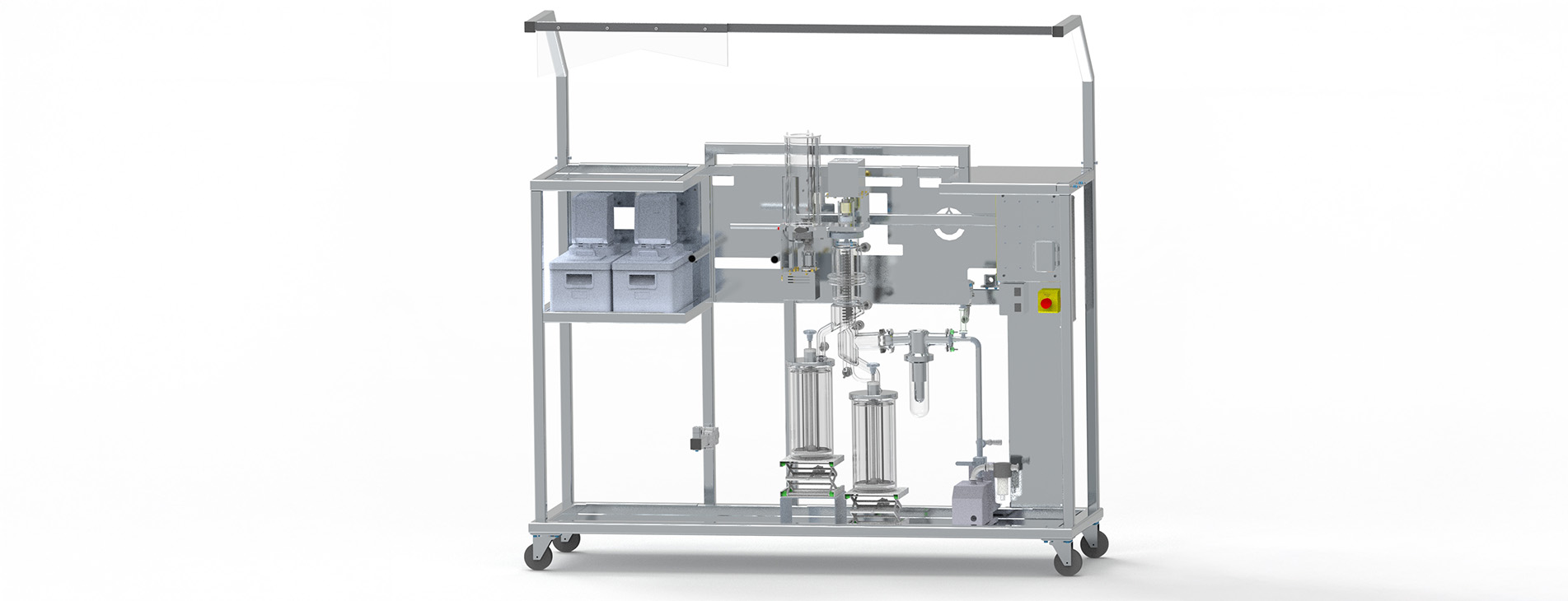

The KDL5 SEMI + is utilized for the semi-continuous distillation of solid or highly viscous products at room temperature. Carousels on the outlet for distillate and concentrate allow up to five samples to be taken without having to interrupt the distillation process in a vacuum (Click here to watch a video on the carousel discharge option). This is a particularly suitable sampling option for inhomogeneous or polymerizing products that cannot be pumped.
The KDL5 CONTI is designed for automated operation in a continuous process. Pumps continuously feed in material and discharge distillate and concentrate. This makes it possible to take samples at any time without having to interrupt the distillation process under vacuum. The KDL5 CONTI is designed for demanding operators who want to obtain results quickly. The KDL5 CONTI is suitable for the continuous distillation of substances that are liquid or of low viscosity at room temperature.

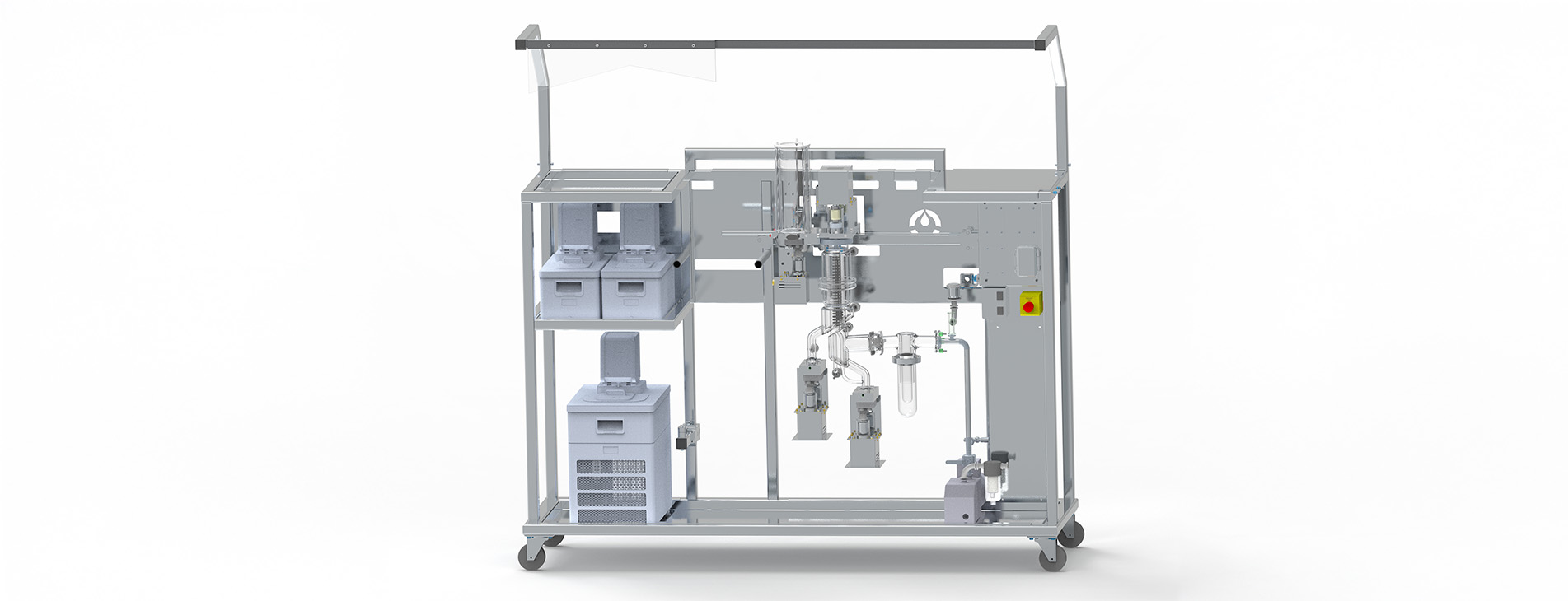

The KDL5 CONTI + is the top model in the KDL5 series. This model is characterized by maximum user-friendliness and therefore quickly achievable results. Continuous distillation is made possible by the pump-based feed and discharge systems. The heated feed container ensures maximum flexibility with regard to the substance to be distilled. Substances that are highly viscous or even solid at room temperature can be distilled in the KDL CONTI +.
Enables continuous supply of feed product. Delivered in addition to the standard feed system.
Available for:
KDL5 MANUAL
A 5 l feed vessel with gear pump replaces the standard feed system
Available for:
KDL5 CONTI
A heated 2 l feed vessel with gear pump replaces the standard feed system
Available for:
KDL5 MANUAL +
A heated 5 l feed vessel with gear pump replaces the standard feed systems
Available for:
KDL5 SEMI + & KDL5 CONTI +
Instead of the roller wiper basket included in the standard scope of delivery
Available for:
KDL5 MANUAL +, KDL5 SEMI +, KDL5 CONTI +
Continuously cooled plug-in cooler eliminates the need for manual coolant replenishment
Available for:
Alle KDL5 Modelle
Replaces the vacuum system supplied as standard with a rotary vane pump and oil diffusion pump for vacuum distillation with working pressures down to 0.001 mbar
Available for:
Alle KDL5 Modelle
For working temperature ranges from +70 °C to +300 °C. Replaces the circulation thermostat supplied as standard (working temperature range: +20 °C to +250 °C)
Available for:
Alle KDL5 Modelle
For working temperature ranges from -20°C to +200°C depending on the distillation task
Available for:
KDL5 SEMI +
Stabilizes the thermal condition of the concentrate before discharge. It is suitable for heating the feed system and at the same time the corresponding concentrate discharge system depending on the model type. Working temperature range: +20 °C to +200 °C.
Available for:
KDL5 MANUAL +, KDL5 SEMI +, KDL5 CONTI +
Our KDL5 systems are manufactured and delivered with a tubular frame as standard. An optional upgrade to a version with a welded frame is available.
Available for:
Alle KDL5 Modelle
Thermal oils for the initial filling of heaters
Available for:
Alle KDL5 Modelle
